CMS100

CPUボード

CMS100

CMS100
CMS100
CMS100
CMS100
CMS100
CMS100
CMS100
CMS100
CMS100
CMS100

10th Generation Intel® Core™ Processors

製品特長

  • ・2 DDR4 2933MHz SODIMM up to 64GB
  • ・Quad Displays: DP++ + HDMI + DVI-I + LVDS/eDP, or DP++ + DP++ + DVI-I + LVDS/eDP
  • ・Supports up to 4K/2K resolution
  • ・Multiple Expansions: 1 PCIe x16, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • ・Rich I/O: 1 Intel 2.5GbE, 1 Intel GbE, 2 COM, up to 10 USB

メーカーページへ

製品仕様

型番CMS100
フォームファクターmini-ITX
サイズ170mm (6.7") x 170mm (6.7")
クラス
CPU10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket, TDP up to 125W
Intel® Xeon W-1290E Processor (Core 10; Max speed 4.8GHz; TDP 95W) (ECC memory supported)
(W480E only)*
Intel® Xeon W-1270E Processor (Core 8; Max speed 4.8GHz; TDP 80W) (ECC memory supported)
(W480E only)*
Intel® Xeon W-1250E Processor (Core 6; Max speed 4.7GHz; TDP 80W) (ECC memory supported)
(W480E only)
Intel® Xeon W-1290TE Processor (Core 10; Max speed 4.5GHz; TDP 35W)(W480E only)
Intel® Xeon W-1270TE Processor (Core 8; Max speed 4.4GHz; TDP 35W)(W480E only)
Intel® Xeon W-1250TE Processor (Core 6; Max speed 3.8GHz; TDP 35W)(W480E only)
Intel® Core i9-10900E Processor (Core 10; Max speed 4.7GHz; TDP 65W)
Intel® Core i9-10900TE Processor (Core 10; Max speed 4.5GHz; TDP 35W)
Intel® Core i7-10700E Processor (Core 8; Max speed 4.5GHz; TDP 65W)
Intel® Core i7-10700TE Processor (Core 8; Max speed 4.4GHz; TDP 35W)
Intel® Core i5-10500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)
Intel® Core i5-10500TE Processor (Core 6; Max speed 3.7GHz; TDP 35W)
Intel® Core i3-10100E Processor (Core 4; Max speed 3.8GHz; TDP 65W)
Intel® Core i3-10100TE Processor (Core 4; Max speed 3.6GHz; TDP 35W)
Intel® Pentium G6400E Processor (Core 2; Max speed 3.8GHz; TDP 65W)
Intel® Pentium G6400TE Processor (Core 2; Max speed 3.2GHz; TDP 35W)
Intel® Celeron G5900E Processor (Core 2; Max speed 3.2GHz; TDP 65W)
Intel® Celeron G5900TE Processor (Core 2; Max speed 3.0GHz; TDP 35W)
*Note: 5-year life cycle support based on Intel IOTG roadmap.
DRAMTwo 260-pin SODIMM up to 64GB
Dual Channel DDR4 2933MHz (ECC supported by W480E only)
ChipsetIntel® W480E/Q470E/H420E Chipset
EthernetW480E/Q470E: 1 x Intel® I225LM PCIe(10/100/1000/2.5G speeds)
1 x Intel® I219LM PHY(10/100/1000 speeds), support vPro/AMT
H420E: 1 x Intel® I225LM PCIe(10/100/1000/2.5G speeds)
1 x Intel® I219V PHY(10/100/1000 speeds)

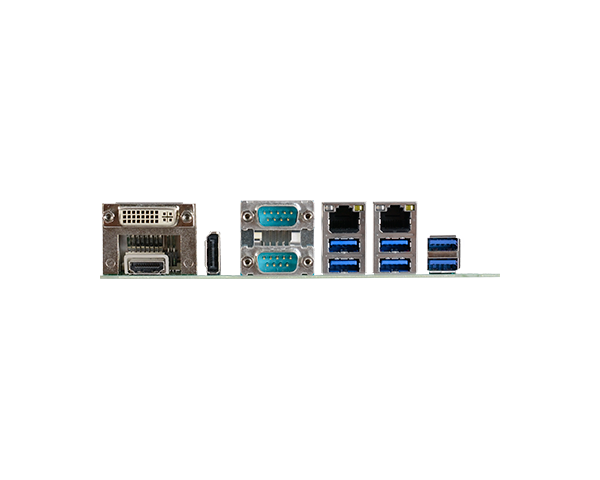

I/O InterfacesEthernet 1 x 2.5GbE (RJ-45)
1 x GbE (RJ-45)
USB W480E/Q470E: 6 x USB 3.2 Gen2 (dual type-A connector)
H420E: 5 x USB 3.2 Gen1 + 1 x USB 2.0 (dual type-A connector)
Display 1 x DP++
1 x HDMI 1.4b or 1 x DP++
1 x DVI-I
Serial 2 x RS232/422/485 (DB-9)
Internal ConnectorsUSB W480E/Q470E: 4 x USB 2.0 (2.0mm pitch)
H420E: 2 x USB 2.0 (2.0mm pitch)
Display 1 x LVDS header
1 x eDP connector
Audio 1 x Front Audio (2.0mm pitch)
SATA 2 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn., W480E/Q470E only)
DIO 1 x 8-bit DIO
1 x DIO Power
LPC 1 x LPC
Expansion1 x PCIe x16 (Gen 3)
1 x M.2 2230 E Key (PCIe x1/USB 2.0)
1 x M.2 2280 M Key (PCIe x4 Gen3 or SATA, H420E supports PCIe x1 signal only)
1 x M.2 2242/3042 B Key (W480E/Q470E: PCIe x1 Gen3 or SATA, USB 3.2 Gen1/USB 2.0)
1 x Nano SIM slot
Storage2 x SATA 3.0 (up to 6Gb/s)
音声
グラフィックス
ビデオインターフェース
ボードコントローラ
内蔵BIOS機能
セキュリティ
電源Type ATX
Connector 8-pin ATX 12V power
24-pin ATX power
OSWindows 10 IoT Enterprise 64-bit
Linux
温度Operating: -5 to 65°C
Storage: -40 to 85°C
湿度Operating: 5 to 90% RH
Storage: 5 to 90% RH
キャリアボード
CertificationCE, FCC, RoHS, UKCA
