CS181-Q370
CPUボード
CS181-Q370
_w600.png)
_w600.png)
_w600.png)
_w600.png)
8th/9th Generation Intel® Core™ Processors
製品特長
- ・2 DDR4 2400/2666MHz SODIMM up to 64GB
- ・Multiple Displays: 1 eDP, 1 DP++/HDMI (autodetection), 4 DP
- ・Supports up to 4K/2K resolution
- ・Multiple Expansions: 1 MXM Type-A/B/B+/C, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- ・Storage: 2 SATA 3.0
- ・Rich I/O: 4 Intel GbE, 2 COM, 4 USB 3.2 Gen2, 2 USB 2.0
製品仕様
| 型番 | CS181-Q370 |
| フォームファクター | mini-ITX |
| サイズ | 195mm (7.7") x 170mm (6.7") |
| クラス | |
| CPU | 9th Generation Intel® Core™ Processors, LGA 1151 Socket, TDP up to 65W Intel® Core i7-9700E Processor (Core 8; Max speed 4.4 GHz; TDP 65W) Intel® Core i7-9700TE Processor (Core 8; Max speed 3.8 GHz; TDP 35W) ...（省略）... |
| DRAM | Two 260-pin SODIMM up to 64GB Dual Channel DDR4 2400/2666MHz |
| Chipset | Intel® Q370 Chipset |
| Ethernet | 1 x Intel® I219LM PHY (10/100/1000Mbps) 3 x Intel® I210AT PCIe (10/100/1000Mbps) |

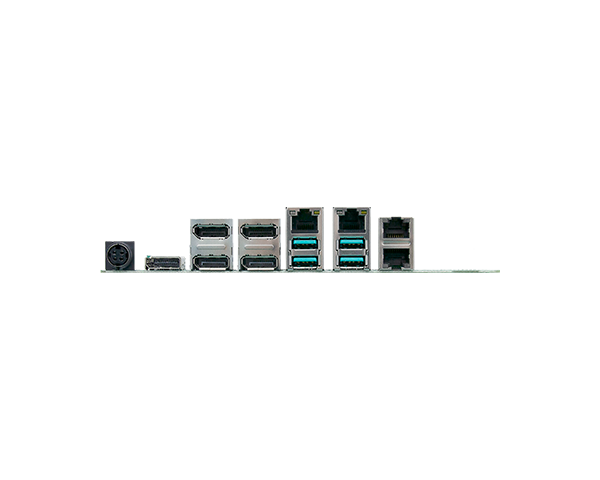

| I/O Interfaces | Ethernet 4 x GbE (RJ-45) USB 4 x USB 3.2 Gen2 (dual type-A connector) ...（省略）... |
| Internal Connectors | Serial 2 x RS232/RS422/RS485, Select by BIOS Display 1 x eDP 1 x LCD/Inverter Power Audio 1 x Front Audio (2 x 5 10-pin 2.00mm pitch header) USB 2 x USB 2.0 (2 x 5 10-pin 2.00mm pitch header) SATA 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5 DIO 1 x 8-bit DIO (1 x 8 8-pin 2.00mm pitch header) 1 x DIO Power (1x 4 4-pin 2.00mm pitch header) |
| Expansion | 1 x MXM Type-A/B/B+/C (support MXM module) (provide 4 x independent DP at rear side) 1 x M.2 2280 M Key (PCIe Gen3 x4/SATA 3.0)(support NVMe and Intel® Optane memory) ...（省略）... |
| Storage | 2 x SATA 3.0 (up to 6Gb/s) |
| 音声 | Realtek ALC888S-VD2-GR |
| グラフィックス | Intel® UHD Graphics 630 (Pentium G5400 and Celeron G4900 support Intel® UHD Graphics 610) |
| ビデオインターフェース | 1 x eDP 1 x DP++/HDMI (auto-detection) (located at front side) ...（省略）... |
| ボードコントローラ | |
| 内蔵BIOS機能 | AMI SPI 128Mbit |
| セキュリティ | dTPM2.0 (default) |
| 電源 | Type Single 19V +/-5% DC Connector DC-in Jack (mini-DIN) |
| OS | Windows 10 IoT Enterprise 64-bit |
| 温度 | Operating: -5 to 65°C Storage: -40 to 85°C |
| 湿度 | Operating: 5 to 90% RH Storage: 5 to 90% RH |
| キャリアボード | |
| Certification | CE, FCC, RoHS |
