CPUモジュール
省電力クラス
max 8GByte onboard LPDDR4 2400 MT/s

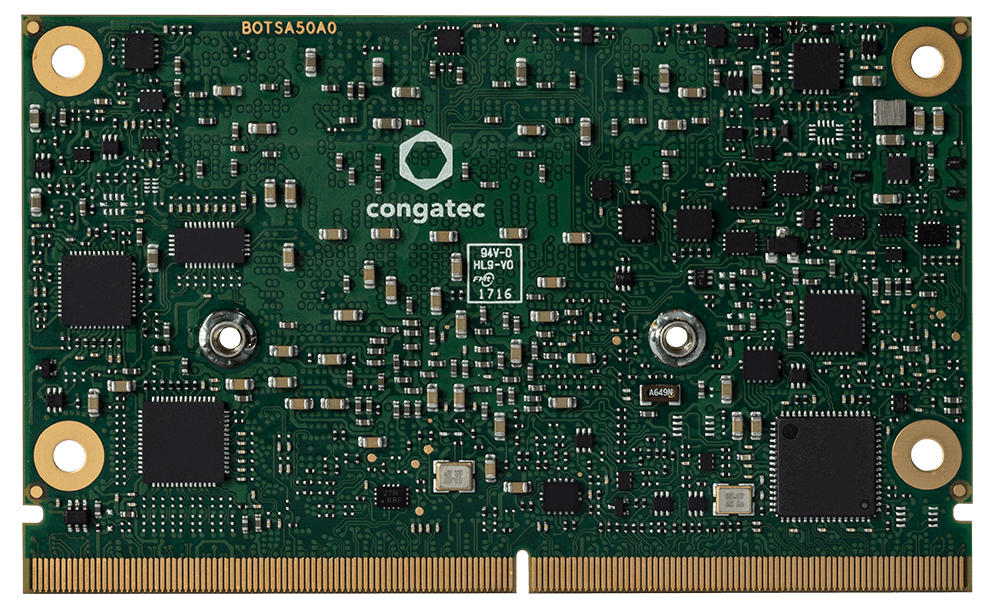

型番 | conga-SA5 |
フォームファクター | SMARCSpecification 2.0 |
サイズ | 82x 50 mm? |
クラス | 省電力クラス |
リード | EMBEDDEDSMARC 2.0 |
CPU | Intel®Celeron® J3455E (4 x 1.5 GHz, 2 MB L2 cache, 10W) Intel® Atom™ x7-E3950 (4 x 1.6 GHz, 2 MB L2 cache, 12W) Intel® Atom™ x5-E3940 (4 x 1.6 GHz, 2 MB L2 cache, 9.5W) Intel® Atom™ x5-E3930 (2 x 1.3 GHz, 2 MB L2 cache, 6.5W) Intel® Celeron® N3350E (2 x 1.1 GHz, 2 MB L2 cache, 6W) Intel® Pentium® N4200E (4 x 1.1 GHz, 2 MB L2 cache, 6W) |
DRAM | max8GByte onboard LPDDR4 2400 MT/s |
Chipset | Integratedin SoC |
Ethernet | 2xIntel® I210 (industrial) /I211 (commercial) GBE SDP support for real time trigger |
I/O Interfaces | 2x USB 3.0 4 x USB 2.0 1 x SATA3 SDIO up to 4x PCIe Gen2 2 x I?C bus 2 x SPI 4 x UART optional M.2 1216 WiFi module (soldered down) |
Internal Connectors | |
音声 | Intel®High Definition Audio |
グラフィックス | Intel®HD Graphics Gen. 9 |
Video ビデオインターフェース | LVDS2x 24 | HDMI | DisplayPort |
congatecボードコントローラ | MultiStage Watchdog | non-volatile User Data Storage | Manufacturing and BoardInformation | Board Statistics | I?C bus (fast mode, 400 kHz, multi-master) | Power Loss Control |
内蔵BIOS機能 | AMIAptio® UEFI 2.x firmware | OEM Logo | OEM CMOS Defaults | LCD Control |Display Auto Detection | Backlight Control | Flash Update |
セキュリティ | Optionaldiscrete ”Trusted Platform Module” (TPM) |
電源 | ACPI5.0 compliant, Smart Battery Management |
OS | Microsoft®Windows 10 | Microsoft® Windows IoT Core | Microsoft® Windows IoT Enterprise| Linux | Yocto | VxWorks |
温度 | Operatingcommercial: 0 .. +60°C Operating industrial: -40 .. +85°C Storage: -40 .. +85°C |
湿度 | Operating:10 .. 90 % r. H. non cond. Storage: 5 .. 95 % r. H. non cond. |
キャリアボード | congatecキャリアボードについてはメーカー製品ページの「Accessories」 の欄をご覧ください |
