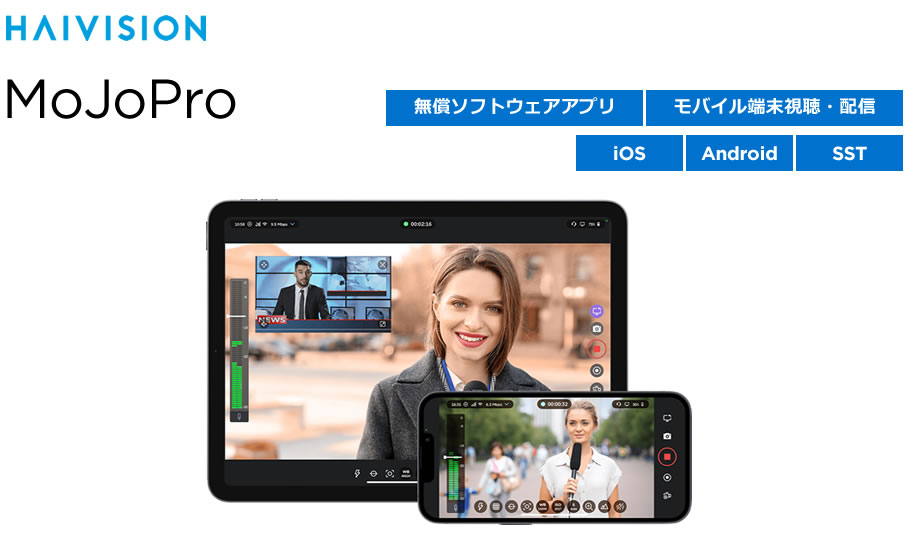

Haivision MoJoProは、Haivision社が提供する無料iOS/Android向けモバイルカメラアプリ*です。直観的なインターフェースで、SSTストリームの作成や受信が可能です。
ビデオリターンやインカム機能もあるため、ニュース速報・スポーツ配信・インタビュー等でも活躍できます。
*接続先のStream Hubでライセンスの取得が必要となります。
AppleとAppleロゴは、米国およびその他の国で全録されたAopleInc.の商標です。
Google Play および Gooele Play ロ日は、Google LLCの商標です。
ワークフロー例

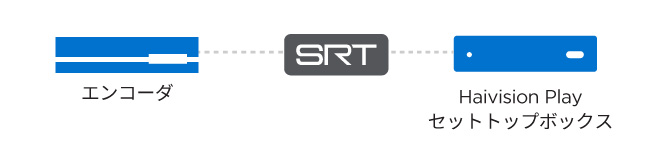

エンコーダからセットトップボックスへ

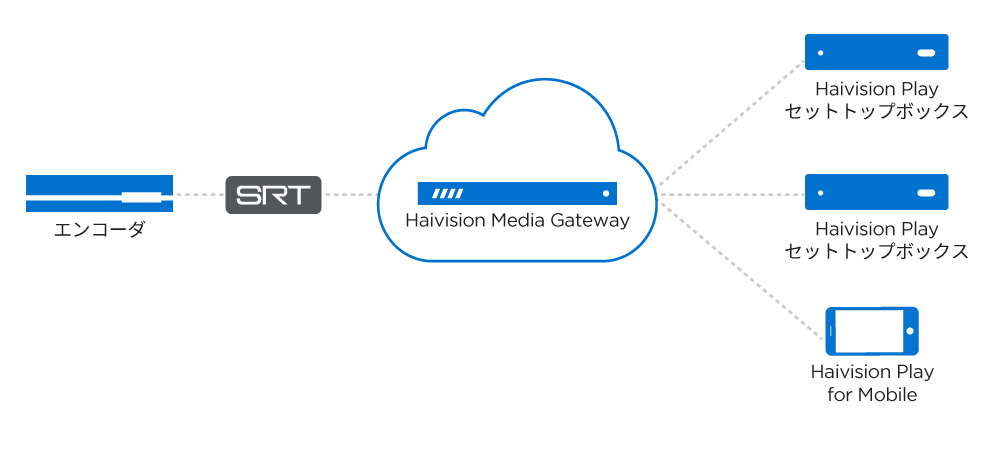

Haivision Media Gatewayを介した構成
特徴
手持ちの携帯電話やモバイル端末から配信・受信が可能
手持ちの携帯電話やモバイル端末にアプリをインストールしていただければ、手軽にストリームの配信・受信が行えます。 直観的なインターフェースで、ローカルで録画をしながらストリームをしたり、クリップを作成、編集、送信することも可能です。
SSTプロトコルをした双方向の通信が可能
SSTとは、ネットワークボンディングによる映像伝送が可能な双方向通信のプロトコルです。 MojoProは、携帯端末内のセルラーモデム(SIMカード)経由での映像伝送の他、Wi-Fi、外部ルーターからの映像伝送も可能です。<図1>
また、双方向通信のプロトコルのため、リターン映像の確認やインカム機能もご使用いただけます。<図2>
*MoJoProの使用には、Stream Hub側でライセンスが必要になります。
SSTプロトコルについてもっと詳しく知る
記事「SRTとSSTの違いを確認してみよう」
図1
図2
データ
左右にスクロールしてご覧ください
VIDEO |
解像度 |
- 3840 x 2160 (recording only from iOS 16) **
- 1920 x 1080
- 1280 x 720
- 640 x 480
- 640 x 360*
|
フレームレート
|
- 25/30fps
- 50/60fps*
- 29.97/59.94fps**
|
エンコーディング
|
- H.264/AVC 4:2:0, 8-bit
- H.265/HEVC 4:2:0, 8-bit
- Progressive scan
- Live: Dynamic and static resolutions
- Recording: Static resolution
|
ビットレート
|
- Up to 10 Mbps
- Constant Bitrate (CBR)
- Variable Bitrate (VBR)
|
遅延
|
Configurable from 1.2 to 10 seconds
|
入力
|
Built-in cameras (front, back, dual back, telephoto, ultra-wide) External camera with SDI/HDMI to USB-C adapter for Android smartphones
|
音声 |
エンコーディング
|
AAC-LC 32 kbps, 64 kbps, 128 kbps or 256 kbps Mono / Stereo |
入力
|
Built-in & external microphone (wired/Bluetooth)
|
ネットワークコネクション |
|
- Cellular: 5G/4G/3G (depending on device and operator)
- WiFi
- Ethernet (with an adaptor)
- BGAN satellite (with a WiFi or Ethernet terminal)**
|
機能 |
|
- Live with/without simultaneous record
- Record with pause/resume function
- Still pictures during live or record IFB/Intercom with the studio Video return display (full screen or picture in picture) Front camera mirroring
- File forwarding with video preview
- Cellular and WiFi network aggregation with SST
- Microphone auto-selection (internal, wired and Bluetooth) Audio-Vu meter with gain adjustment
- Grid overlay
- Horizontal and vertical tilts overlay
- Local metadata insertion for recorded clip**
- Story centric workflow with Studio metadata association to
- Live or forwarded clips Video editing**
- Video clip sequencing
- Video clip trimming
- Logo overlay
- Audio track /voice-over
|
対応機種 |
|
- iPhone (iOS 15, 16 and 17)
- 8, 8 Plus
- X, XS, XR, Xs Max
- 11, 12, 13 and 14 (Standard, Pro and Pro Max) SE
- iPad
- MacBook (with M1 & M2 chipsets)
- Android devices (Android 8 to 13)
- Samsung S9, S10, S20, S21 and S23
- Samsung A10, A20, and A52
- Huawei P20, P30
- LG G5
- Oppo Reno
- Xiaomi Mi 10
- OnePlus Google Pixel 4a (5G)
- Vivo Y22S
|
