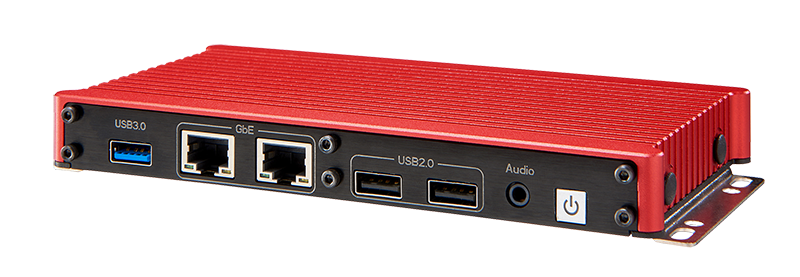

SmartSL

超薄型組み込みボックスPC

製品特長

メーカーページへ

お問い合わせ

製品仕様

System
CPU	Intel® Celeron® N2807 1.58 GHz, Dual Core L2 cache 1MB, 4.5W TDP
	Intel® Atom™E3815 1.46 GHz, Single Core L2 cache 512KB, 5W TDP
	Intel® Pentium® N4200 1.1/2.5 GHz, Quad Core L2 cache 2MB, 6W TDP
Chipset	Integated in SoC
BIOS	AMI Aptio® UEFI 2.xfirmware
Memory	DDR3L with 1333MT/s, 8GB (Max.)

Graphics
Display	1x HDMI
Controller	Intel® HDGraphics Generation 7

Power
DC Input	9~32VDC

Mechanical
Dimensions (W x D x H)	173 x 88 x 21.7mm (6.81” x 3.46” x 0.85”)
Weight	0.75kg

External IO
Ethernet	2x RJ45 GbE
USB 3.0/2.0	1x USB 3.0/2.0 port, 4x USB 2.0 ports
COM	1x RS-232 port
Digital I/O	16-bit programmable GPIO
Audio	1x Mic in, Line out

Storage
SATA	1x mSATA socket
SIM	2x USIM slot

Expansion Slot
Mini-PCIe	2x full-Length Mini-PCIe socket (PCIe + USB + USIM)

Others
Watchdog	Multistage watchdog
Antenna	3x antenna openings

Environment
Operating Temperature	Operation: -20°C~60°C
Storage Temperature	Storage: -40°C~85°C Operation: 10% to 90%
Operating Humidity	10%~90% Humidity, non-condensing
Storage Humidity	5%~95% Humidity, non-condensing
Certification	CE/CB/FCC Class A

OS Support
Optional OS Installation	Windows 10
	Windows 10 IoT
	Windows 8
	Windows Embedded 8 Standard
	Windows 7
	Windows 7 Embedded Compact
	Linux
