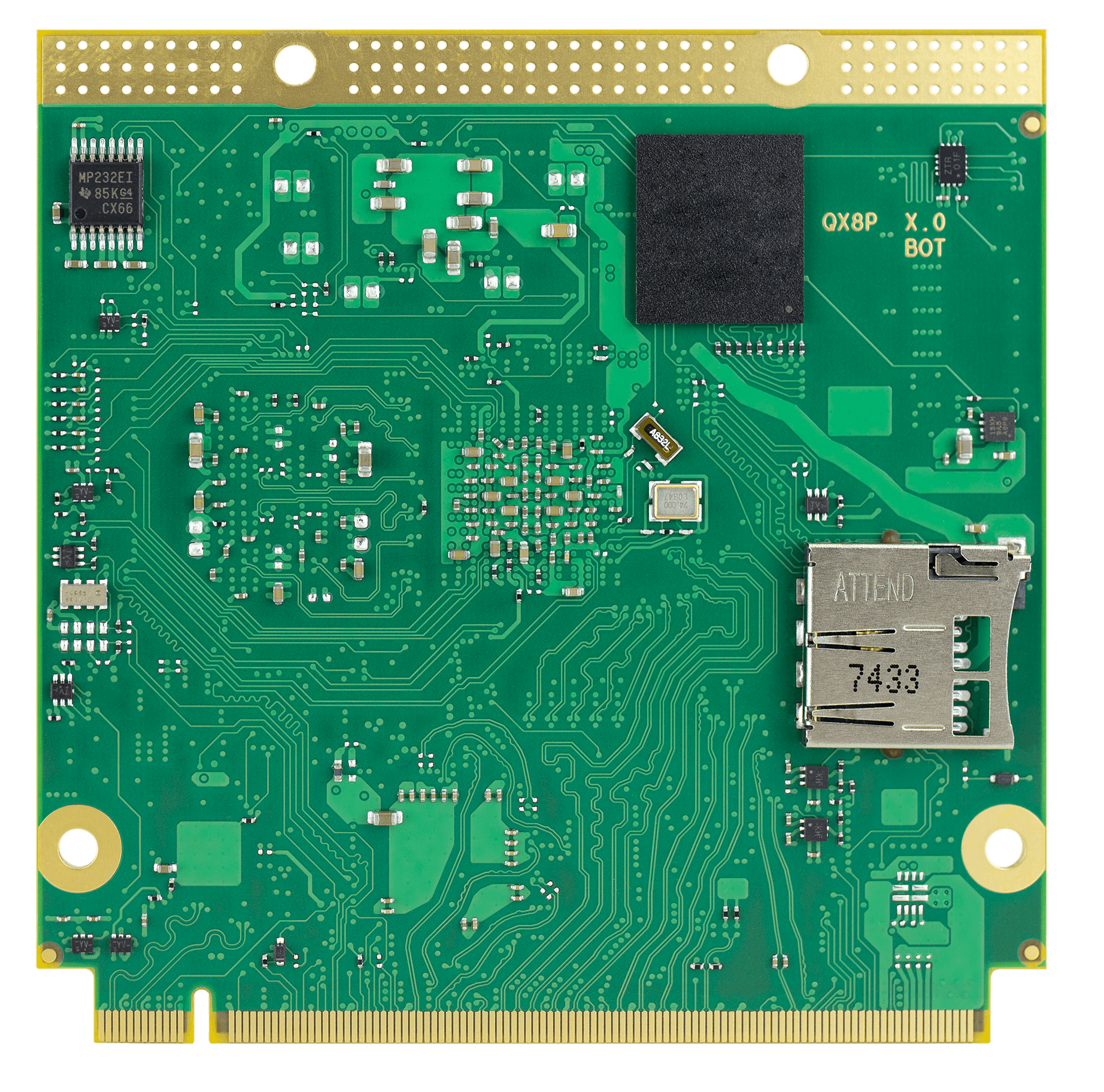

conga-QMX8-Plus

CPUモジュール

省電力クラス

conga-QMX8-Plus

2022/Q3発売予定

Qseven module based on NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU

製品特長

・ARM Quad Core Cortex-A53 / M7 + NPU搭載のNXP i.MX 8M Plus 14nmプロセッサ・シリーズ
・NPUと統合カメラISPを搭載し、AI、機械学習、ビジョン機能を強化
・超低消費電力アーキテクチャ(2～5W)
・最大3つの独立したディスプレイをサポート
・最大15年間の長期供給
・最大温度範囲：-40°C ～85°C

メーカーページへ

お問い合わせ

製品仕様

型番	conga-QMX8-Plus
フォームファクター	Qseven Specification 2.1
サイズ	70 x 70 mm
クラス	省電力クラス
リード	NXP i.MX 8M Plus for Industry 4.0 & AI
CPU	i.MX 8M Plus Quad (consumer) i.MX 8M Plus Quad (industrial)
DRAM	Up to 6 GByte onboard LPDDR4 memory \| 4000 MT/s \| inline ECC
Chipset	Integratedin SoC
Ethernet	1x Gbit Ethernet with IEEE 1588 and TSN Support
I/O Interfaces	1x dual-role USB 3.0 \| 3x USB 2.0 \| 1x USB 3.0 \| 1x SDIO 3.0 \| 1x onboard μSD card socket \| 1x PCIe 3.0 \| 2x I2C \| 1x SPI 1x UART with Handshake \| 1x CAN FD \| 12x GPIOs
Internal Connectors
音声	1x I2S \| HiFi 4 DSP
グラフィックス	Integrated in SoC \| GC7000UL 3D graphics with 2 high performance vec4 shaders \| GC520L 2D graphics VPU up to 1080p60 H.265/H.264 decoding and encoding \| OpenGL ES 3.1 \| Vulcan \| OpenCL 1.2 FP \| OpenVG 1.1 2 independent displays
Video ビデオインターフェース	1x dual channel 24-bit LVDS \| 1x HDMI 2.0a \| 1x MIPI-DSI 4-lane shared with second LVDS channel (optional) Up to 2x MIPI-CSI 4-lane onboard connectors \| 2x integrated Image Signal Processors (ISP) for cameras with up to 12 MP resolution
congatecボードコントローラ
Boot Loader	U-Boot boot loader
セキュリティ	Cryptographic Acceleration and Assurance Module (CAAM) \| Resource Domain Controller \| ARM® TrustZone® High Assurance Boot support \| Encryption Engine AES-128/192/256, 3DES, ARC4, RSA4096, TRNG SHA-1, SHA-2, SHA-256, MD-5 \| RSA-1024, 2048, 3072, 4096 and secure key storage \| side channel attack resistance
電源	PMIC
OS	Linux, Yocto Project \| Android
温度	Operating Temperature Range:? 0 to +60°C?? commercial grade -40 to +85°C?? industrial grade Storage Temperature Range:? -40 to +85°C
湿度	Operating: 10 - 90% r. H. non cond. Storage: 5 - 95% r. H. non cond.
キャリアボード	congatecキャリアボードについてはメーカー製品ページの「Accessories」の欄をご覧ください
