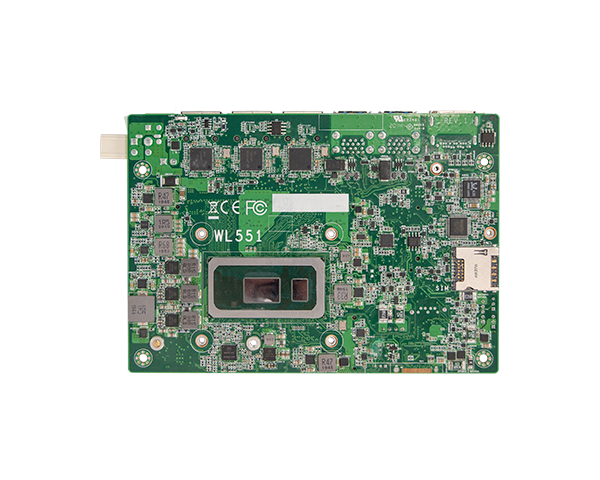

WL551
CPUボード
WL551
 R1_w600.png)
 R1_w600.png)
 R1_w600.png)
 R1)_w600.png)
8th Gen Intel® Core™ Processor 3.5" SBC
製品特長
- ・Dual independent displays: DP++/HDMI, 1 LVDS or eDP (opt.)
- ・4K High Resolution: Supports 4K/2K resolution
- ・Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- ・Rich I/O 1: 3 Intel GbE, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0
製品仕様
| 型番 | WL551 |
| フォームファクター | 3.5"SBC |
| サイズ | 146mm (5.75") x 102mm (4.02") |
| クラス | |
| CPU | 8th Generation Intel® Core™ Processors, BGA 1528 Intel® Core™ i7-8665UE, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W Intel® Core™ i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W Intel® Core™ i3-8145UE, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W Intel® Core™ Celeron® 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W |
| DRAM | One 260-pin SODIMM up to 32GB Single Channel DDR4 up to 2400MHz |
| Chipset | |
| Ethernet | 3 x Intel® I211AT PCIe (10/100/1000Mbps) or 3 x Intel® I210IT PCIe (10/100/1000Mbps) |
| I/O Interfaces | Ethernet 3 x GbE (RJ-45) USB 4 x USB 3.1 Gen 2 Display 1 x COMBO port (DP++/HDMI) |
| Internal Connectors | Serial 1 x RS-232/422/485 (2.00mm pitch) RS485 support auto flow control USB 2 x USB 2.0 (2.00mm pitch) Display 1 x LVDS LCD Panel connector or 1 x eDP LCD panel connector 1 x LCD/Intverter Power Audio 1 x Audio (Line-out/Mic-in) SATA 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power DIO 1 x 8-bit DIO SMBus 1 x SMBus |
| Expansion | 1 x M.2 M key 2280/2242 (PCIe x4/SATA 3.0) 1 x M.2 B key 3042/2242 (USB 3.1 Gen1/USB 2.0/SATA 3.0 or PCIe x1) Support Nano SIM slot (opt.) 1 x M.2 E key 2230 (PCIe x2/USB 2.0) Support Innodisk InnoAGE™ SSD |
| Storage | 1 x SATA 3.0 (up to 6Gb/s) |
| 音声 | Realtek ALC888S-VD2-GR |
| グラフィックス | Intel® UHD Graphics 620/ Intel® UHD Graphics 610 (for Celeron 4305UE) |
| ビデオインターフェース | 1 x DP++/HDMI 1 x LVDS or 1 x eDP (opt.) DP++: resolution up to 4096x2160@60Hz HDMI1.4: resolution up to 3840x2160@30Hz LVDS: resolution up to 1920x1200 @60Hz eDP: resolution up to 3840x2160 @ 60Hz |
| ボードコントローラ | |
| 内蔵BIOS機能 | AMI SPI 128Mbit |
| セキュリティ | fTPM2.0 (default) dTPM2.0 (opt.) |
| 電源 | Type Single 12V +/-10% DC Connector 4-pin Right Angle Type Connector (default) DC Jack (available upon request) 4-pin Vertical Type Connector (available upon request) Consumption Typical: 8665UE, 12V @ 0.64A (7.68W) Max: 8665UE, 12V @ 2.5A (30W) |
| OS | Windows 10 IoT Enterprise (64-bit) Linux |
| 温度 | Operating: -5 to 65°C, -20 to 80°C Storage: -40 to 85°C |
| 湿度 | Operating: 5 to 90% RH Storage: 5 to 90% RH |
| キャリアボード | |
| Certification | CE, FCC, RoHS, UKCA, KC |
