CMS632-W480E,Q470E

TOP ＞ CPUボード/モジュール ＞ CMS632-W480E,Q470E

CPUボード

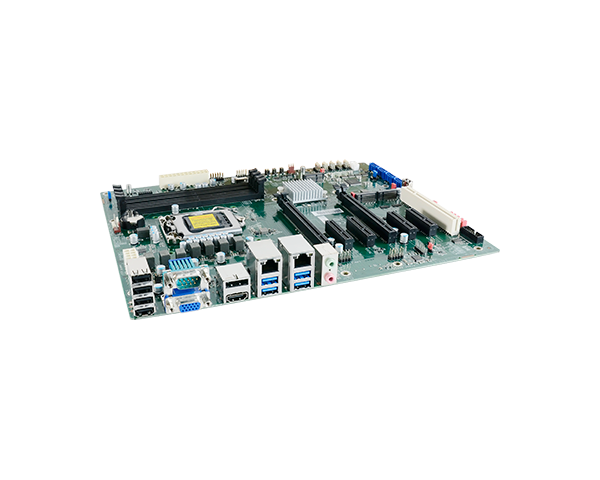

CMS632-W480E,Q470E

CMS632-W480E
CMS632-W480E
CMS632-W480E
CMS632-W480E
CMS632-W480E
CMS632-W480E
CMS632-W480E
CMS632-W480E
CMS632-W480E

10th Gen Intel® Core Processors

製品特長

  • ・4 DDR4 UDIMM up to 128GB
  • ・Triple Displays: VGA + DP++ + HDMI
  • ・Supports 4K/2K resolution
  • ・Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 E Key
  • ・Rich I/O: 2 Intel GbE, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 7 USB 2.0

メーカーページへ

製品仕様

型番CMS632-W480E,Q470E
フォームファクターATX
サイズ305mm (12") x 244mm (9.6")
クラス
CPU10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W
Intel® Xeon® W-1290E (10 Cores, 20M Cache, up to 4.8 GHz); 95W (ECC support on W480E SKU only)
Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W (ECC support on W480E SKU only)
Intel® Xeon® W-1270E (8 Cores, 16M Cache, up to 4.8 GHz); 80W (ECC support on W480E SKU only)
Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W (ECC support on W480E SKU only)
Intel® Xeon® W-1250E (6 Cores, 12M Cache, up to 4.7 GHz); 80W (ECC support on W480E SKU only)
Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W (ECC support on W480E SKU only)
Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W
Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W
Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W
Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W
Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz,); 65W (ECC support on SKU W480E only)
Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W (ECC support on SKU W480E only)
Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W (Not support on W480E SKU)
Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W (Not support on W480E SKU)
Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W (Not support on W480E SKU)
DRAMFour 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC)
Dual Channel DDR4 2400/2666/2933MHz (ECC support: W480E only)
ChipsetIntel® W480E/Q470E Chipset
Ethernet1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i9/ i7/i5 supports iAMT)
2 x GbE (RJ-45)
I/O Interfaces2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signal)
4 x PCIe x4 (Gen 3) (2 PCIe x4 co-lay M.2 M Key, function selected by jumper.)
1 x PCI
1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/SATA/Intel® RST support) (co-lay PCIe x4 slot#5 , function selected by jumper.)
1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/Intel® RST support) (co-lay PCIe x4 slot#6 , function selected by jumper.)
1 x M.2 2230 E Key (USB 2.0/PCIe x1) (opt.)
2 x GbE (RJ-45)
1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
4 x USB 2.0
1 x VGA
1 x DP++
1 x HDMI
1 x Line-out
1 x Mic-in
1 x Line-in (opt., MOQ required）
Internal Connectors1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
4 x RS-232 (2.54mm pitch)
2 x USB 3.2 Gen 2 (Key B 20-pin)
2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required)
1 x USB 2.0 Vertical Type A
1 x Front Audio Header
1 x S/PDIF
4 x SATA 3.0 (up to 6Gb/s, SATA 3)
RAID 0/1/5/10
1 x 16-bit DIO
1 x LPC (supports LPC EXT-RS232/RS485 module)
1 x SMBus
1 x PS/2 (mini-DIN-6)
Expansion2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signal)
4 x PCIe x4 (Gen 3) (2 PCIe x4 co-lay M.2 M Key, function selected by jumper.)
1 x PCI
1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/SATA/Intel® RST support)
(co-lay PCIe x4 slot#5, function selected by jumper.)
1 x M.2 2242/2260/2280 M Key (PCIe Gen3 x4 NVMe/Intel® RST support)
(co-lay PCIe x4 slot#6 , function selected by jumper.)
1 x M.2 2230 E Key (USB 2.0/PCIe x1) (opt.)
Storage
音声Realtek ALC888
グラフィックスIntel® HD Gen 9 Graphics
ビデオインターフェース1 x VGA VGA: resolution up to 1920x1200 @ 60Hz
1 x DP++ DP++: resolution up to 4096x2160 @ 60Hz
1 x HDMI 1.4b HDMI: resolution up to 4096x2160 @ 24Hz
ボードコントローラ
内蔵BIOS機能AMI SPI 128Mbit
セキュリティNUVOTON TPM2.0 (opt., MOQ required)
電源ATX
OSWindows 10 IoT Enterprise 64-bit
Windows Server 2019 (opt. only support Intel® i210)
Linux
温度Operating: -5 to 65°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
湿度Operating: 5 to 95% RH
Storage: 5 to 95% RH
キャリアボード
CertificationCE, FCC Class B, RoHS, UKCA
