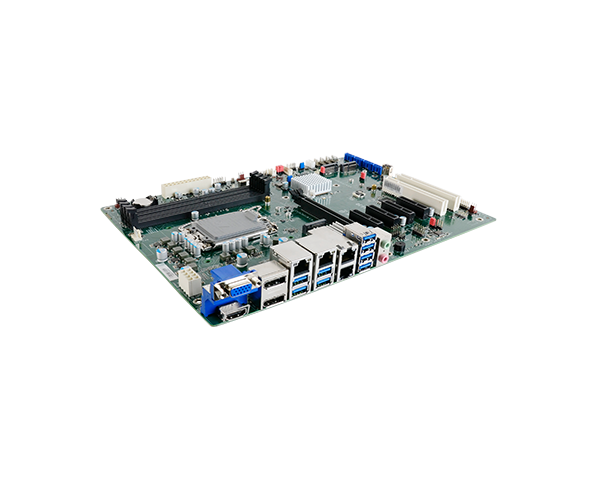

ADS630-R680E,Q670E
CPUボード
ADS630-R680E,Q670E
_w600.png)
_w600.png)
_w600.png)
13/12th Gen Intel® Core Processors
製品特長
- ・4 DDR4 UDIMM up to 128GB
- ・Quad Displays: VGA + 2 x DP++ + HDMI
- ・Supports 4K resolution
- ・Multiple Expansion: 1 PCIe x16(Gen 5), 4 PCIe x4(Gen 4), 2 PCI, 2 M.2 M key, 1 M.2 E Key
- ・Rich I/O: 2 Intel 10GbE, 2 Intel 2.5GbE, 6 USB 3.2 Gen2, 4 USB 3.2 Gen1, 8 USB 2.0
製品仕様
| 型番 | ADS630-R680E,Q670E |
| フォームファクター | ATX |
| サイズ | 305mm (12") x 244mm (9.6") |
| クラス | |
| CPU | 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W |
| DRAM | Four 288-pin UDIMM up to 128GB (ECC/Non-ECC) Dual Channel DDR5 up to 4400 MHz *Speed support list follow User’s Manual |
| Chipset | Intel® R680E/Q670E Chipset |
| Ethernet | 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT) 1 x Intel® I210-AT (co-lay I226-V) R680E：2 x Intel® I226-V Q670E：1 x 2.5GbE (RJ-45) 1 x 1GbE (RJ-45, opt. 2.5GbE) R680E：3 x 2.5GbE (RJ-45) 1 x 1GbE (RJ-45, opt. 2.5GbE) 4 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 1 x VGA 2 x DP++ 1 x HDMI 1 x Line-out 1 x Mic-in 1 x Line-in (opt.) |
| I/O Interfaces | 2 x PCIe x16 (Gen 4, 16 or 8+8) 3 x PCIe x4 (Gen 4) 1 x PCIe x4 (Gen 3, co-lay M.2-M2, function selected by BIOS.) 1 x PCI 1 x M.2 E key 1 x M.2 A key (support M2-OOB) 1 x M.2 M key (PCIe x4 Gen4 NVMe, SATA) 1 x M.2 M key (opt. co-lay PCIe x4 Gen3 slot #6, function selected by BIOS.) Q670E：1 x 2.5GbE (RJ-45) 1 x 1GbE (RJ-45, opt. 2.5GbE) R680E：3 x 2.5GbE (RJ-45) 1 x 1GbE (RJ-45, opt. 2.5GbE) 2 x RS-232/422/485 4 x RS-232 2 x USB 3.2 Gen1 1 x USB 2.0 Type A 2 x USB 2.0 (colay vertical Type A, MOQ required)] 1 x Front Audio 1 x S/PDIF 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 1 x 8-bit DIO 1 x SMBus 1 x eSPI 1 x PS/2 (2.54mm pitch) |
| Internal Connectors | 2 x PCIe x16 (Gen 4, 16 or 8+8) 3 x PCIe x4 (Gen 4) 1 x PCIe x4 (Gen 3, co-lay M.2-M2, function selected by BIOS.) 1 x PCI 1 x M.2 E key 1 x M.2 A key for M2-OOB (only R680E) 1 x M.2 M key (PCIe x4 Gen4 NVMe, SATA) 1 x M.2 M key (opt. co-lay PCIe x4 Gen3 slot #6, function selected by BIOS.) |
| Expansion | 2 x PCIe x16 (Gen 4, 16 or 8+8) 3 x PCIe x4 (Gen 4) 1 x PCIe x4 (Gen 3, co-lay M.2-M2, function selected by BIOS.) 1 x PCI 1 x M.2 E key 1 x M.2 A key for M2-OOB (only R680E) 1 x M.2 M key (PCIe x4 Gen4 NVMe, SATA) 1 x M.2 M key (opt. co-lay PCIe x4 Gen3 slot #6, function selected by BIOS.) |
| Storage | |
| 音声 | Realtek ALC888S |
| グラフィックス | Intel® HD Gen 9 Graphics |
| ビデオインターフェース | 1 x VGA VGA: resolution up to 1920x1200 @ 60Hz 2 x DP++ DP++: resolution up to 4096x2304 @60Hz 1 x HDMI 2.0a HDMI: resolution up to 4096x2160 @ 24Hz |
| ボードコントローラ | |
| 内蔵BIOS機能 | AMI SPI 256Mbit |
| セキュリティ | TPM2.0 |
| 電源 | ATX |
| OS | Windows 10 IoT Enterprise 64-bit Windows 11 Enterprise Linux |
| 温度 | Operating: -5 to 65°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery |
| 湿度 | Operating: 5 to 95% RH Storage: 5 to 95% RH |
| キャリアボード | |
| Certification | CE, FCC Class B, RoHS, UKCA |
