CPUモジュール
省電力クラス
max 8GByte onboardDDR3L 1866 MT/s
フォームファクター | COM Express Mini, Type 10 Connector Layout |
---|---|
CPU | Intel® Atom™ x7-E3950 (4 x 1.6 GHz, 2 MB L2 cache, 12W) Intel® Celeron® N3350E (2 x 1.1 GHz, 2 MB L2 cache, 6W) Intel® Pentium® N4200E (4 x 1.1 GHz, 2 MB L2 cache, 6W) Intel® Atom™ x5-E3930 (2 x 1.3 GHz, 2 MB L2 cache, 6.5W) Intel® Atom™ x5-E3940 (4 x 1.6 GHz, 2 MB L2 cache, 9.5W) |
DRAM | max 8GByte onboard DDR3L 1866 MT/s |
CPUモジュール
省電力クラス
Up to 4 GByte onboard LPDDR4 memory | 2400 MT/s
フォームファクター | SMARC Specification 2.0 |
---|---|
CPU | NXP i.MX8 QuadXPlus (4, ARM Cortex-A35, 1x ARM Cortex-M4F, 4W) NXP i.MX8 DualX (2, Cortex-A35, 1x Cortex-M4F) NXP i.MX8 DualXPlus (2, ARM Cortex-A35, 1x Cortex-M4F) |
DRAM | Up to 4 GByte onboard LPDDR4 memory | 2400 MT/s |
CPUモジュール
省電力クラス
max 8GByte onboard LPDDR4 2400 MT/s
フォームファクター | SMARC Specification 2.0 |
---|---|
CPU | Intel® Celeron® J3455E (4 x 1.5 GHz, 2 MB L2 cache, 10W) Intel® Atom™ x7-E3950 (4 x 1.6 GHz, 2 MB L2 cache, 12W) Intel® Atom™ x5-E3940 (4 x 1.6 GHz, 2 MB L2 cache, 9.5W) Intel® Atom™ x5-E3930 (2 x 1.3 GHz, 2 MB L2 cache, 6.5W) Intel® Celeron® N3350E (2 x 1.1 GHz, 2 MB L2 cache, 6W) Intel® Pentium® N4200E (4 x 1.1 GHz, 2 MB L2 cache, 6W) |
DRAM | max 8GByte onboard LPDDR4 2400 MT/s |
CPUモジュール
省電力クラス
max 8GByte onboardDDR3L 1866 MT/s
フォームファクター | Qseven Rev. 2.0 compliant |
---|---|
CPU | Intel® Celeron® J3455E (4 x 1.5 GHz, 2 MB L2 cache, 10W) Intel® Pentium® N4200E (4 x 1.1 GHz, 2 MB L2 cache, 6W) Intel® Celeron® N3350E (2 x 1.1 GHz, 2 MB L2 cache, 6W) Intel® Atom™ x5-E3930 (2 x 1.3 GHz, 2 MB L2 cache, 6.5W) Intel® Atom™ x5-E3940 (4 x 1.6 GHz, 2 MB L2 cache, 9.5W) Intel® Atom™ x7-E3950 (4 x 1.6 GHz, 2 MB L2 cache, 12W) |
DRAM | max 8GByte onboard DDR3L 1866 MT/s |
CPUモジュール
省電力クラス
max. 2 GByte DDR3 1066MT/s
フォームファクター | Qseven Rev. 2.0 |
---|---|
CPU | NXP i.MX6 Solo ARM Cortex A9 (1 x 1.0 GHz, 512kB L2 cache, 3W) NXP i.MX6 Dual Lite ARM Cortex A9 (2 x 1.0 GHz, 512kB L2 cache, 3W) NXP i.MX6 Dual ARM Cortex A9 (2 x 1.0 GHz, 1MB L2 cache, 3W) NXP i.MX6 Quad ARM Cortex A9 (4 x 1.0 GHz, 1MB L2 cache, 3W) |
DRAM | max. 2 GByte DDR3 1066 MT/s |
CPUモジュール
パフォーマンスクラス
Dual channel DDR4 up to 2400 MT/s | 2x SO-DIMM | up to 2x 32 Gbyte
フォームファクター | Industrial Thin Mini-ITX |
---|---|
CPU | Intel® Celeron® 4305UE (2 x 2.0 GHz, 2MB cache, 15W) Intel® Core™ i3-8145UE (2 x 2.2 GHz, 4MB cache, 15W) Intel® Core™ i5-8365UE (4 x 1.6 GHz, 6MB cache, 15W) Intel® Core™ i7-8665UE (4 x 1.7 GHz, 8MB cache, 15W) |
DRAM | Dual channel DDR4 up to 2400 MT/s | 2x SO-DIMM | up to 2x 32 Gbyte |
CPUモジュール
パフォーマンスクラス
Up to 32 GBytedual channel DDR4 memory
フォームファクター | Industrial Thin Mini-ITX |
---|---|
CPU | Intel® Core™ i5-7300U (2 x 2.6 GHz, 3MB cache, 15W) Intel® Celeron® 3965U (2 x 2.2 GHz, 2MB cache, 15W) Intel® Core™ i7-7600U (2 x 2.8 GHz, 4MB cache, 15W) Intel® Core™ i3-7100U (2 x 2.4 GHz, 3MB cache, 15W) |
DRAM | Up to 32 GByte dual channel DDR4 memory |
CPUモジュール
パフォーマンスクラス
Support for 2x SO DIMM Socket (dual channel DDR4 up to 2133 MT/s), max. 2x 16GB
フォームファクター | Industrial Thin Mini-ITX |
---|---|
CPU | Intel® Core™ i7-6600U (2 x 2.6 GHz, 4MB cache, 15W) Intel® Celeron® 3955U (2 x 2.0 GHz, 2MB cache, 15W) Intel® Core™ i3-6100U (2 x 2.3 GHz, 3MB cache, 15W) Intel® Core™ i5-6300U (2 x 2.4 GHz, 3MB cache, 15W) |
DRAM | Support for 2x SO DIMM Socket (dual channel DDR4 up to 2133 MT/s), max. 2x 16GB |
CPUモジュール
省電力クラス
2022/Q3発売予定

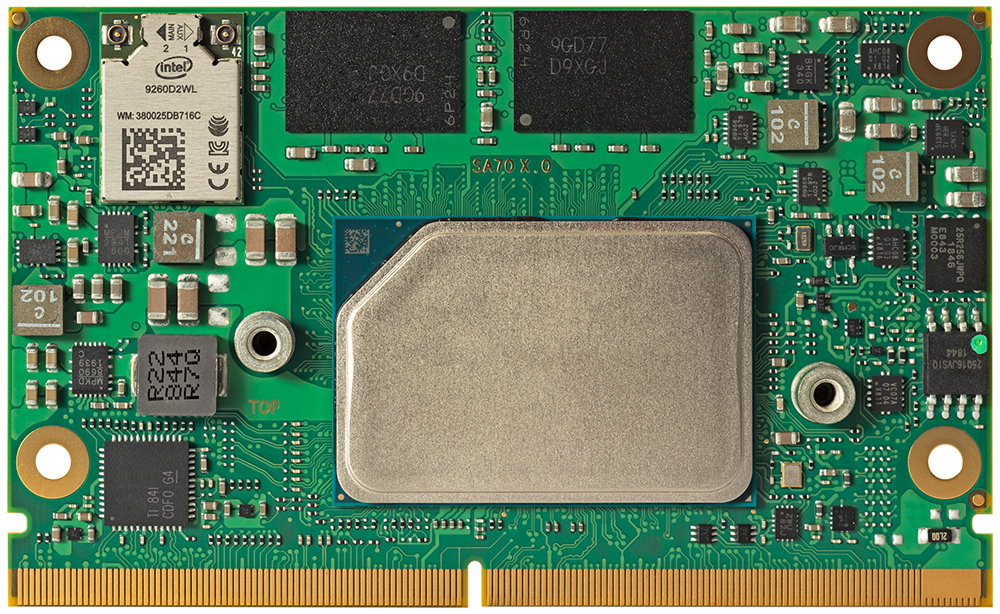

SMARC 2.1 module based on Intel® Atom™ x6000E and Intel® Pentium® and Celeron® J Series processors
フォームファクター | SMARC Specification 2.1 |
---|---|
CPU | Intel® Celeron® J6413 (4 x 1.8 GHz, 1.5 MB cache, 10W) Intel® Pentium® J6426 (4 x 2.0 GHz, 1.5 MB cache, 10W) Intel® Atom™ x6414RE (4 x 1.5 GHz, 1.5 MB cache, 9W) Intel® Atom™ x6425RE (4 x 1.9 GHz, 1.5 MB cache, 12W) Intel® Atom™ x6212RE (2 x 1.2 GHz, 1.5 MB cache, 6W) Intel® Atom™ x6211E (2 x 1.3 GHz, 1.5 MB cache, 6W) Intel® Atom™ x6413E (4 x 1.5 GHz, 1.5 MB cache, 9W) Intel® Atom™ x6425E (4 x 2.0 GHz, 1.5 MB cache, 12W) |
DRAM | max. 16GB onboard LPDDR4x with up to 4.267 MT/s |
CPUモジュール
省電力クラス
Qseven module based on Intel® Atom™ x6000E, Intel® Pentium® and Celeron® J processor series
フォームファクター | Qseven Spec. Rev. 2.1 compliant |
---|---|
CPU | Intel® Celeron® J6413 (4 x 1.8 GHz, 1.5 MB cache, 10W) Intel® Pentium® J6426 (4 x 2.0 GHz, 1.5 MB cache, 10W) Intel® Atom™ x6414RE (4 x 1.5 GHz, 1.5 MB cache, 9W) Intel® Atom™ x6425RE (4 x 1.9 GHz, 1.5 MB cache, 12W) Intel® Atom™ x6212RE (2 x 1.2 GHz, 1.5 MB cache, 6W) Intel® Atom™ x6211E (2 x 1.3 GHz, 1.5 MB cache, 6W) Intel® Atom™ x6413E (4 x 1.5 GHz, 1.5 MB cache, 9W) Intel® Atom™ x6425E (4 x 2.0 GHz, 1.5 MB cache, 12W) |
DRAM | max. 16GB onboard LPDDR4x with up to 4.267 MT/s |
