OFP-2101-PC

ステンレススチール

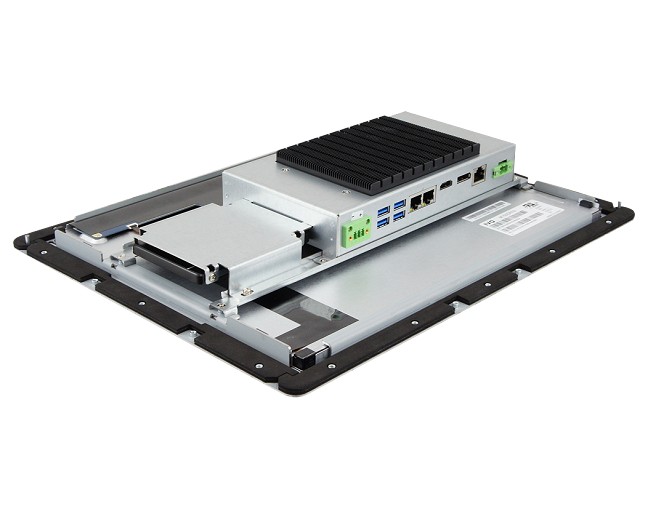

OFP-2101-PC

7th Generation Intel® Core™ i3/i5/i7 Processor Open Frame Panel PC

製品特長

オプションのカラーフレーム付きフラットベゼルオープンフレームデザイン
カスタマイズしたハウジングとの統合が容易
豊富なI/Oインターフェース
リモート電源ボタンコネクタ
9V～24V DCワイドレンジ電源入力
モジュール設計、アップグレード可能

メーカーページへ

お問い合わせ

製品仕様

Processor	Intel® Core i7 7600U Intel® Core i5 7300U Intel® Core i3 7100U
Memory	Max. 32GB DDR4, default 4GB
Display Size	21
Max. Resolution	1920x 1080
Luminance (cd/m2)	250
Contrast	1:1000
Max. Color	16.7M
View Angle (H/V)	178/178
Backlight Lifetime(hrs)	30000
Touch Type	Projected capacitive
Touch Interface	USB
Light Transmission (%)	89
Point of touch	10
USB 3.0	4
USB 2.0	0
RS-232/422/485 Selectable under BIOS	1 (DSUB9)
RS-232	option
LAN	2 x GbE
Additional Graphics	1 x HDMI 1 x DP
Audio	None
Digital I/O	Option
Power Connector	1 x 3-pin terminal block
Power Button	1 x 2-pin terminal block for remote
Dimensions (mm)	TBD
Net Weight (kgs)	TBD
Thermal Design	Fanless
Membrane Control	None
Built-in Speaker/MIC	None
Internal Expansion Bus	1 x mini PCI-E for full-size mSATA
Expansion Slot	None
Wireless	Optional
HDD	1 x 2.5” HDD space, default 64GB SSD
Removable	None
Power Input Range	9V~24V DC
Chassis Material	SGCC
Color(Front/Back)	Raw SGCC
IP Rating	Front side with IP65
Mounting	Open frame design
Operating Temperature	0°C~50°C
Storage Temperature	-20°C~70°C
Storage Humidity	10%~90% @40°C (non-condensing)
Certification	CE / FCC class B
Operating System Support	Windows 10, 64-bit, Linux Kernel 4+
