IPPC1003-PC

ARM-Based

IPPC1003-PC

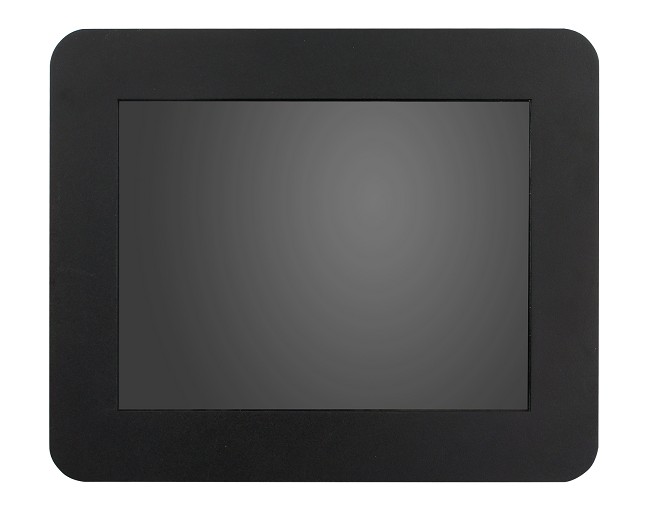

10.4” Intel® Atom™ E3815 Single-Core Processor Panel PC

製品特長

投影型静電容量方式タッチパネル
IP65定格フロントベゼル
-20°C～50°Cの動作温度
12V DC電源入力

メーカーページへ

お問い合わせ

製品仕様

Processor	Intel® Atom™ Processor E3815 1.46 GHz
Memory	1x DDR3L SO-DIMM, up to 4GB, default 2GB
Display Size	10.4” TFT-LCD
Max. Resolution	1024 x 768
Luminance (cd/m2)	350 cd/m2
Contrast	700:1
Max. Color	16.7M
View Angle (H/V)	150°/150°
Backlight Lifetime(hrs)	30000 hrs
Touch Type	Projected capacitive
Touch Interface	USB
Light Transmission (%)	85
Point of touch	Up to 2

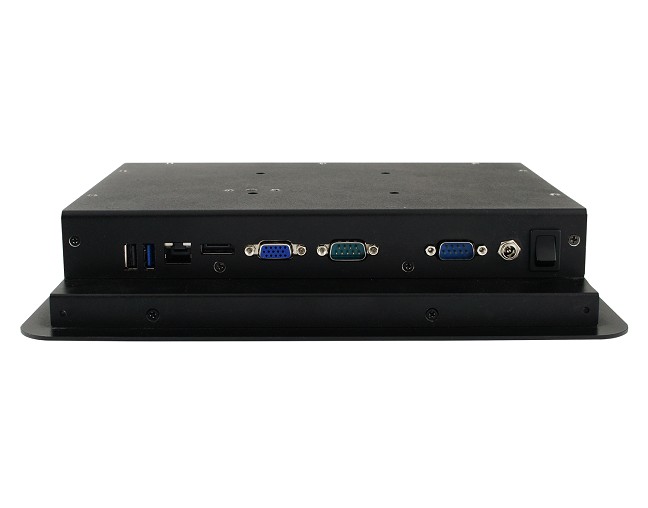

USB 3.0	1
USB 2.0	1
RS-232/422/485 Selectable under BIOS	1
RS-232	1
LAN	1x GbE
Additional Graphics	DP and VGA
Audio	None
Digital I/O	None
Power Connector	Power jack
Power Button	Rock switch
Dimensions (mm)	286mm x 236mm x 51.5mm
Net Weight (kgs)	2.2 kgs
Thermal Design	Fanless
Membrane Control	None
Built-in Speaker/MIC	None
Internal Expansion Bus	1x Mini PCI-E(x1) [full/half-size] 2x Mini PCI-E(x1) [half-size]
Expansion Slot	None
Wireless	Optional
HDD	1x 2.5” SATA
Removable	None
Power Input Range	12V DC
Chassis Material	SGCC with aluminum heat-sink, Black
Color(Front/Back)	Black/Black
IP Rating	IP65 rated front bezel
Mounting	Panel mount and VEAS 75x75mm
Operating Temperature	-20°C ~ 50°C
Storage Temperature	-30°C ~ 80°C
Storage Humidity	10%~90% (non-condensing)
Certification	CE/FCC class B and LVD
Operating System Support	Windows 8 32/64bit, Windows 7 Pro for Embedded 64bit, WES7 64bit
