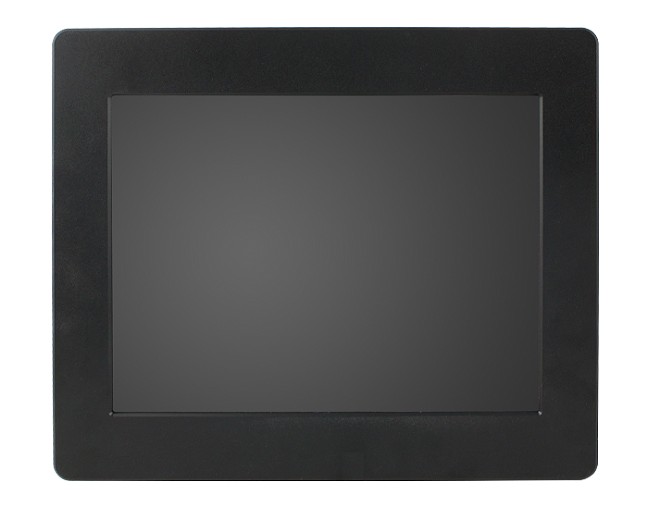

IPPC1203-RE

ARM-Based

IPPC1203-RE

Intel® Celeron® J1900 Processor Expanable Panel PC

製品特長

高い費用対効果
低消費電力
IP65規格のフロントベゼル

メーカーページへ

お問い合わせ

製品仕様

Processor	Intel® Celeron® Processor J1900 2.42GHz
Memory	2 x DDR3L SO-DIMM, up to 8GB, default4GB
Display Size	12.1" TFT-LCD
Max. Resolution	1024 x 768
Luminance (cd/m2)	350
Contrast	800:1
Max. Color	16.7M
View Angle (H/V)	170/170
Backlight Lifetime(hrs)	30,000
Touch Type	Resistive
Touch Interface	USB
Light Transmission (%)	79
Point of touch	1
USB 3.0	1
USB 2.0	2 at rear side
RS-232/422/485 Selectable under BIOS	1
RS-232	1
LAN	2x GbE
Additional Graphics	1x VGA and DVI-D
Audio	MIC in/ Line in/Line out phone jack
Digital I/O	None
Power Connector	Terminal block (Jack type as option)
Power Button	Rock switch
Dimensions (mm)	320 x 270 x 101
Net Weight (kgs)	7.5
Thermal Design	Fanless
Membrane Control	None
Built-in Speaker/MIC	None
Internal Expansion Bus	1x Mini PCI-E half size 1x Mini PCI-E full/half size, mSATA support
Expansion Slot	1x PCI-E (x1) and 1x PCI
Wireless	Optional
HDD	1x 2.5” SATA HDD, default 2.5” 64G MLC SSD
Removable	None
Power Input Range	12V/24V DC input
Chassis Material	SGCC
Color(Front/Back)	Black / Black
IP Rating	Front IP65/Back IP30
Mounting	VESA 75x75 / 100x100, panel mounting
Operating Temperature	0°C ~ 50°C (with SSD) 0°C ~ 40°C (with HDD)
Storage Temperature	-20°C~60°C
Storage Humidity	10%~90% (non-condensing) at 40°C
Certification	CE/FCC class B and LVD/CB/CCC
Operating System Support	Windows 7 Professional/WES 7and 8/Windows 8.1/ Windows 10Linux Kernel 3.X
