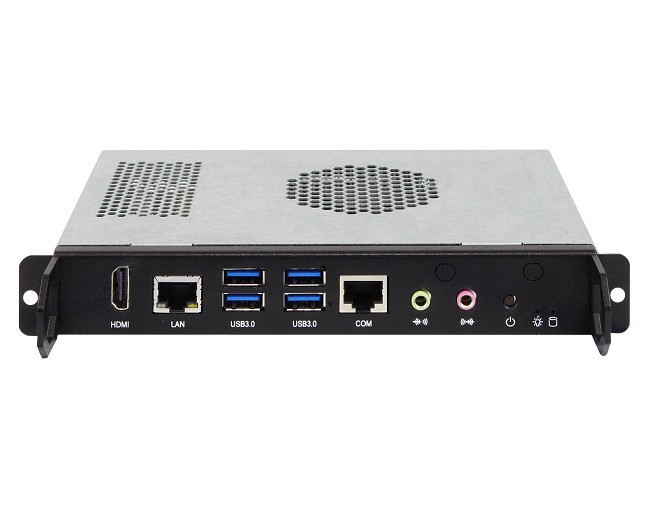

IOPS-602

OPS

Intel®HD統合グラフィックス搭載第7世代Intel®Core™UシリーズプロセッサーベースOPSサイネージプレーヤー

System Mainboard	OPS602
CPU Type	7th Generation Intel® Core™ U-Series Processor
CPU Package	BGA1356
Chipset	Integrated in Intel® SoC
Memory	2x DDR4-2133 SO-DIMM, dual channel, Max 32 GB.
Graphics	7th Generation Intel® Core™ U-Series processor integrated graphics
LAN	1x Intel® I219LM LAN PHY for I5/I7 1x Intel® I219V LAN PHY for I3
I/O Interface	1x HDMI 1.4b 4x USB 3.0 port 1x RJ45 for Gigabit LAN 1x RJ45 for RS232 serial port 2x audio connectors for Line-in / Line-out Power / HDD LED, 1x power on/off button
Auto Control and Monitoring	Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement	+12~19V DC
Construction	SGCC
Weight	0.9 kgs (1.98 lbs)
Chassis Color	Black and gray
Storage	1x M.2 M-Key (2280)
Power Supply	Power Requirement: DC-in +12V~+19V (Intel® OPS standard)
Mounting	OPS standard bracket
Dimensions	200mm(W) x 119mm(D) x 30mm(H) 7.87”(W) x 4.69”(D) x 1.18”(H)
Operating Temperature	0°C~ 45°C (32°F~113°F)
Storage Temperature	-20°C ~ 80°C (-4°F~176°F)
Relative Humidity	5%~90% @45oC (non-condensing)
Vibration	SSD: 5 grms / 5~500Hz / random operation
Certification	CE, FCC class B
Operating System Support	Windows 10 64-bit Linux Ubuntu
