SI-18
エントリークラス
SI-18

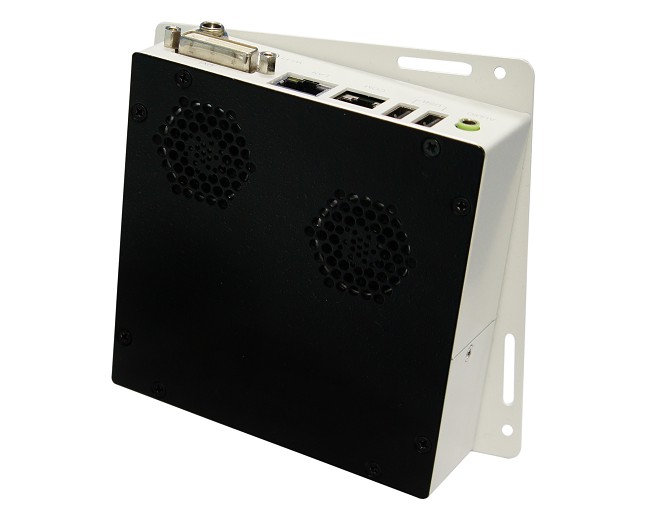

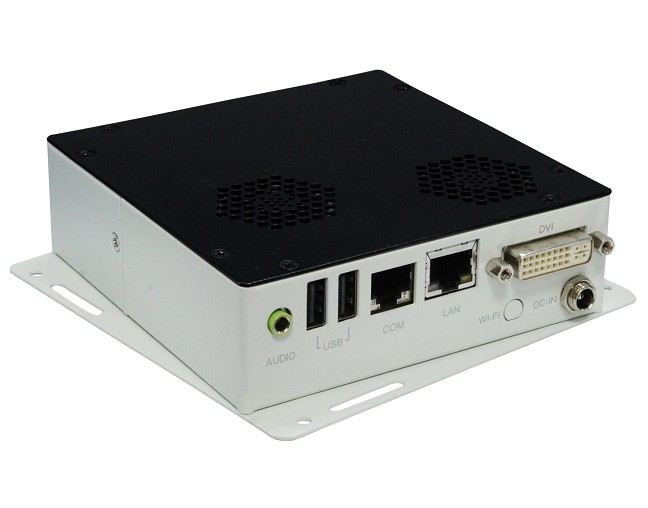

1xハイブリッド-DVI (VGA/ DVI/ HDMI with audio) 搭載 AMD GシリーズデュアルコアT56Nコンパクトサイネージプレーヤー
製品特長
- ・iSMART-自動スケジューラーおよび電源再開用
- ・AMD組み込みGシリーズAPU（デュアルコア）
- ・プロセッサに統合された80コアDirectX 11 GPU
- ・1x Hybrid-DVI（CRT、DVIまたはHDMIをサポート）
- ・1x DDR3 1333MHz SO-DIMM、最大4ギガバイト
- ・Wi-FiまたはBluetoothオプション用のミニPCI-E（ハーフサイズ）x 1
- ・1つのRS232シリアルポート
- ・コンパクト設計
製品仕様
| System Mainboard | EB900-16C-SI |
| CPU Type | AMD G-Series Dual-Core APU (T56N=1.65GHz @ 18W TDP) |
| CPU Package | 413-BGA |
| Chipset | AMD A50M |
| Memory | DDR3 1333MHz SO-DIMM memory, Max. 4GB |
| Graphics | AMD Radeon™ HD6320 series graphics processing system integrated in APU ? DirectX 11 ? Direct Compute 11 ? Open GL 4.0 ? OpenCL 1.1 ? UVD3 Hardware Video Decoder ? MPEG2, MPEG4, H.264, VC-1, WMV9 ? Hybrid-DVI connector supporting CRT, DVI, or HDMI |
| LAN | 1x Realtek RTL8111C PCI-E Gigabit LAN controller |
| Expansion Slots | 1x Mini PCI-E (Half-size) for Wi-Fi or Bluetooth options |
| I/O Interface | 1x Hybrid-DVI (VGA/ DVI/ HDMI with audio) 2x USB 2.0 ports 1x RJ45 for Gigabit LAN 1x RJ45 for RS232 serial port 1x Microjack audio connector for Line-out |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) On / Off scheduler: 2 time slots |
| Power Requirement | +12V DC-in |
| Construction | SGCC |
| Weight | 0.8Kg (1.76lbs) |
| Chassis Color | Black & White |
| Storage | 1x 2.5" HDD drive bay |
| Power Supply | 60W power adaptor |
| Mounting | Slim design with wall mounting holes |
| Dimensions | 125mm(W) x 125mm(D) x 36mm(H) 4.92”(W) x 4.92”(D) x 1.42”(H) |
| Operating Temperature | 0°C~ 40°C (32°F~104°F) |
| Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | SSD: 5 grms / 5~500Hz / random operation HDD: 0.25 grms / 5~500Hz / random operation |
| Certification | CE, FCC class B & CCC |
| Operating System Support | Windows® 7 (32/64-bit), Windows 8.1† (32/64-bit) Window Embedded Standard 7 (32/64-bit), Window Embedded Standard 8 (32/64-bit) Linux Closed Source (64-bit), Linux Open Source (64-bit) |
