SI-61S
高性能クラス

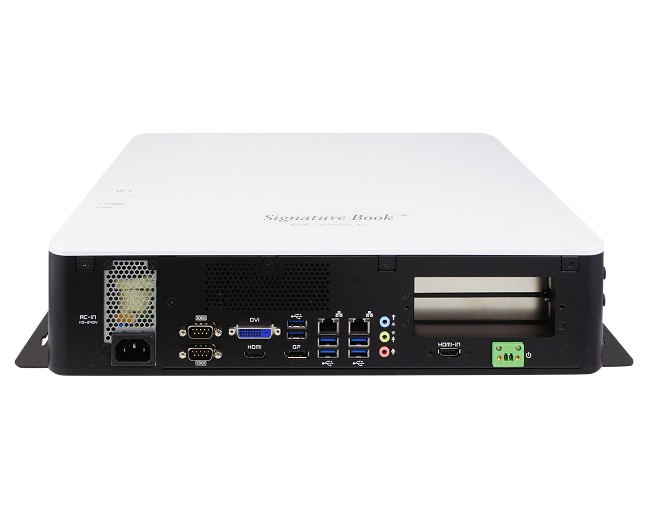

SI-61S
1x PCI-E（x16）または2x PCI-E（x8）スロット搭載 第7/6世代Intel®Core™デスクトッププロセッサベースビデオウォールプレーヤー
製品特長
- ・iCONTROLインテリジェント省エネ＆オブザーバー遠隔監視技術
- ・第7/6世代Intel®Core™プロセッサ
- ・DDR4 2133 SO-DIMM×2、デュアルチャンネル、最大32GB
- ・Wi-Fi、Bluetooth、4G LTE、またはキャプチャカードオプション用の1x Mini PCI-E（フルサイズ）
- ・Wi-Fi、Bluetooth、または4G LTEオプション用の1x Mini PCI-E（ハーフサイズ）
- ・2 x 2.5インチSATA SSD（RAID 1対応）
- ・Matrox / AMD / Nvidia GPUカードオプション用のPCI-E x16コネクタに基づく1x PCI-E（x16）または2x PCI-E（x8）
製品仕様
| System Mainboard | MI991AF |
| CPU Type | 7th/6th Generation Intel® desktop processors (14nm monolithic) TDP<=65W |
| CPU Socket | LGA1151 |
| Chipset | Q170 PCH |
| Memory | 2x DDR4 2133 SO-DIMM, Dual channel, Max 32GB |
| Graphics | Integrated Intel® HD Graphics 530 |
| LAN | 1x Intel® I219LM Gigabit LAN controller 1x Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN) |
| Expansion Slots | 1x Mini PCI-E(full-sized) for Wi-Fi, Bluetooth, 4G LTE or capture card options 1x Mini PCI-E(half-sized) for Wi-Fi, Bluetooth or 4G LTE 1x PCI-E(x16) or 2 x PCI-E (x8) based on PCI-E x16 connectors for Matrox / AMD / Nvidia graphics card |
| I/O Interface | 1x HDMI, 1x DVI-D and 1x DP from MI991 MB 6x USB 3.0, 2x USB 2.0 1x GPIO port 2x RJ45 for Gigabit LAN 1x COM#1 port for RS232/422/485 1x COM#2 port for RS232 only 3x Microjack audio connectors for Mic in, Line-in and Line-out 1x HDMI in for the capture card option Power / HDD LED, 1x power button 1x Terminal block for external power button 1x Reset button, 1x DC 12V output |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
| Power Requirement | AC 110V~240V |
| Construction | Aluminum + SGCC |
| Weight | 8kgs (17.64Ibs) |
| Chassis Color | Black & white |
| Storage | 2x 2.5” SATA SSD with RAID 1 support |
| Power Supply | Internal 500W PSU |
| Mounting | Standard system bracket |
| Dimensions | 436mm(W) x 345mm(D) x 93mm(H) 17.16”(W) x 13.58”(D) x 3.66”(H) |
| Operating Temperature | 0°C~ 45°C (32°F~113°F) |
| Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Vibration | mSATA: 5 grms / 5~500Hz / random operation |
| Certification | CE, FCC class B |
| Operating System Support | Win7 64-bit & Win8.1 64-bit (for Intel Skylake solution series only) and Win10 64-bit Enterprise |
